Galaxy Series 3.7 Meter PR-12/4 Antenna Foundation Diagram Specifications

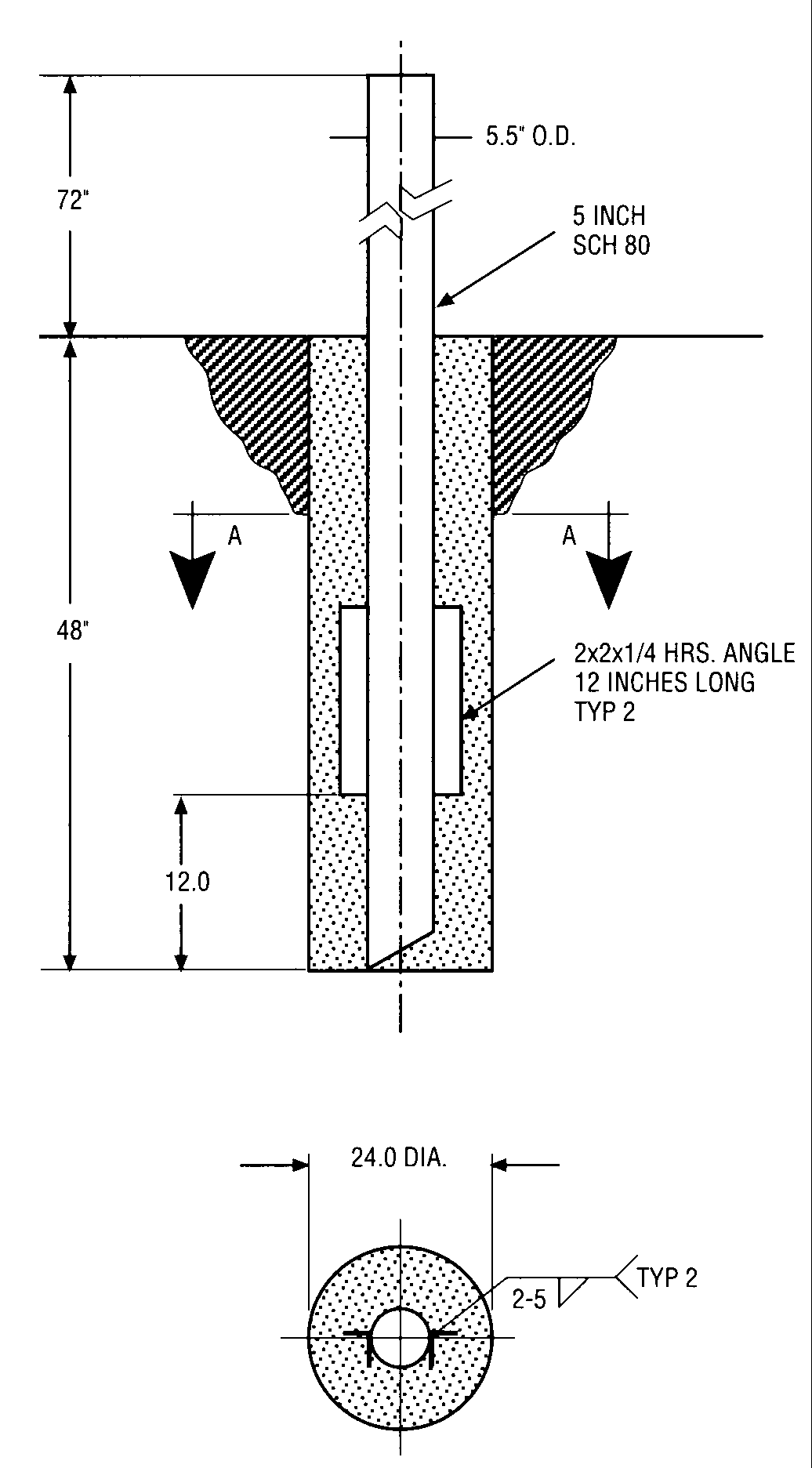

Foundation Drawing
Return to AFC Home Page Return to AFC Home Page

      Specifications

      • Foundation Drawing, gif 32k
      • 2 x 2 x 1/4 Hrs. Angle & 5" schedule 80 pipe should conform with ASTM A36 structural steel.
      • All concrete should conform to building code standards and have a minimum compressive strength of 3000 PSI at 28 days. (Per ACI-318-77)
      • Soil bearing capacity should be no less than 2000 PSF.
      • Concrete should be poured against undisturbed soil.
      • Allow concrete 24 hour set time before installation of antenna.
      • The antenna should be properly grounded to meet applicable local codes.
      • Minimum depth as shown, or extend to local frost lines.

AFC does not represent or warrant that any particular design or size of foundation is appropriate for any locality or earth station installation.
